The XACT nv36 binocular was engineered by experienced operators, with operational demands at the forefront of its design.
Built to deliver flexible and enhanced night vision performance, the system supports military personnel and law enforcement professionals in a wide range of missions.

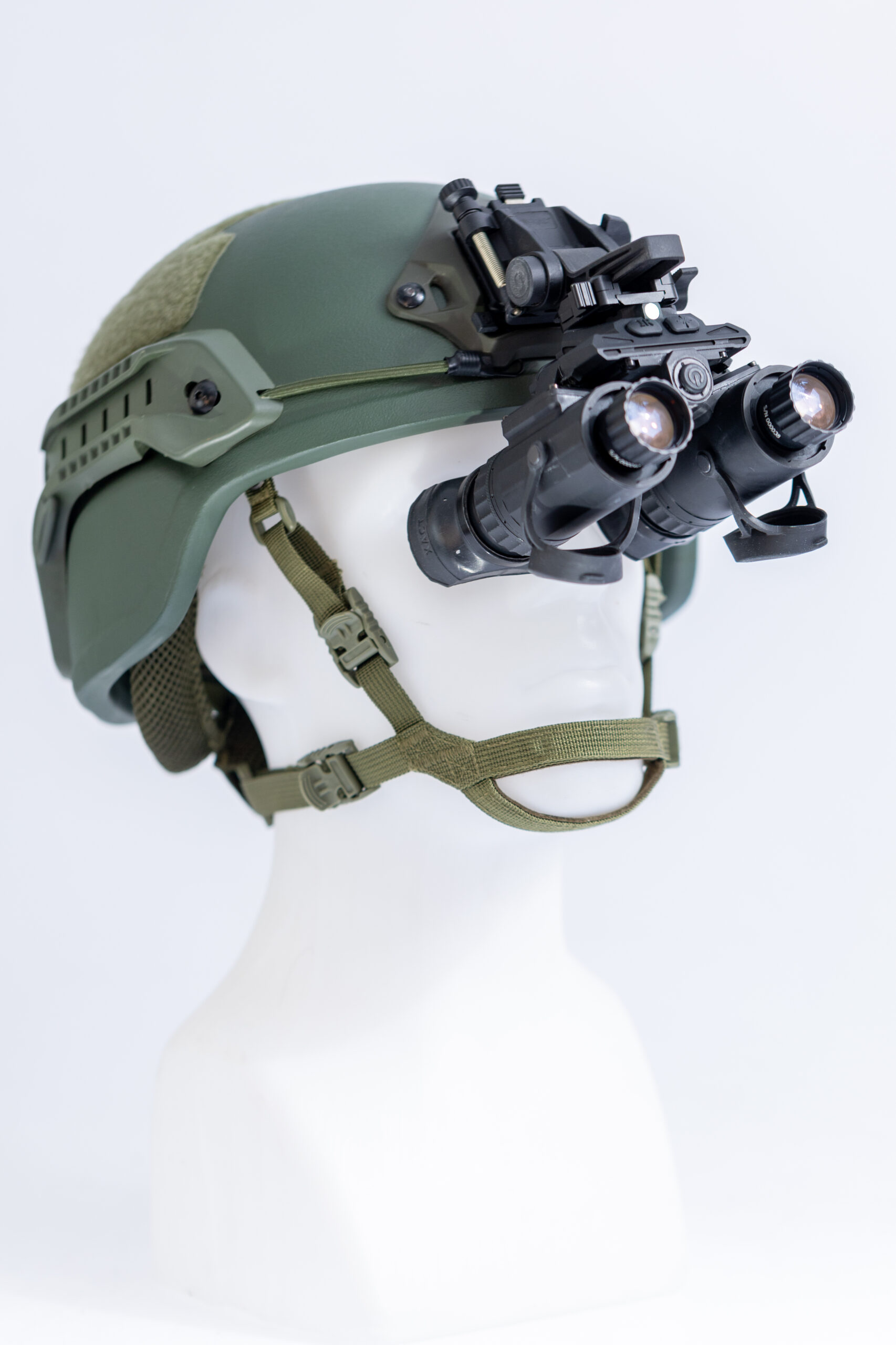

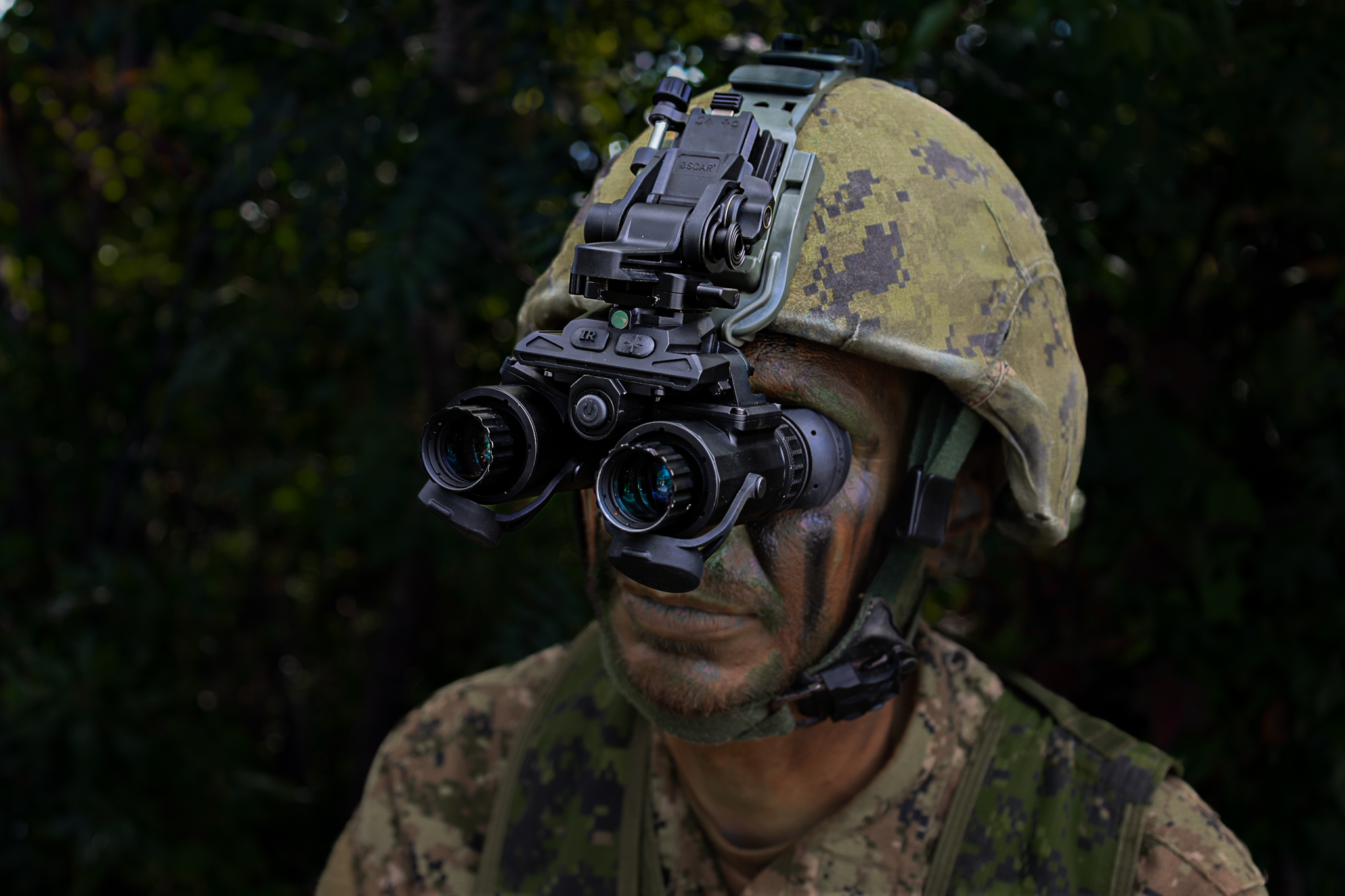

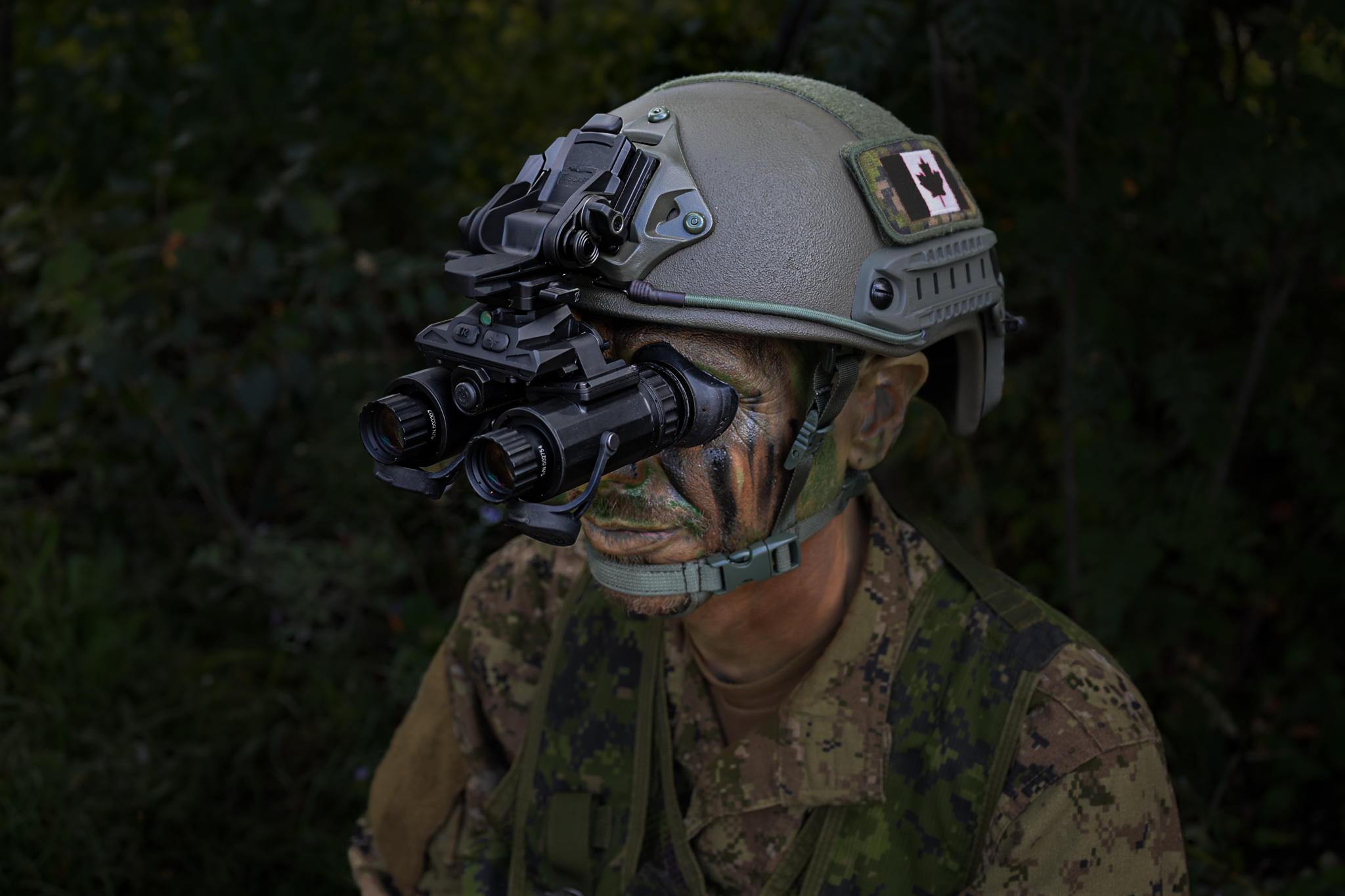

XACT nv36 offers a high-resolution, clear, and bright image in a lightweight design with head-mount, helmet-mount, or hand-held configurations. The nv36 provides two forms of standard battery-power providing either 24-hours, or 96-hours of operation.
Developed with an uncompromising focus on capability, the XACT nv36 prioritizes performance above all else. The result is a system that provides a decisive advantage in low-light and complex operational environments.
Length | 105 mm (without eye guard) |
Width | 101 mm |
Height | 75 mm |
Weight | 550 g |
Advanced and Compact | 18 mm INTENS I2 tubes |
Extended spectrum | 450 nm to 950 nm |
IR illumination wavelength | 890 nm |
FOV | 40° |
Focusing Range | 25 cm to infinity |
Diopter Adjustment | -6 to +2 |
Eye Relief | ≤ 25 mm |
Magnification | x1 ± 5% |
